International Dynetics

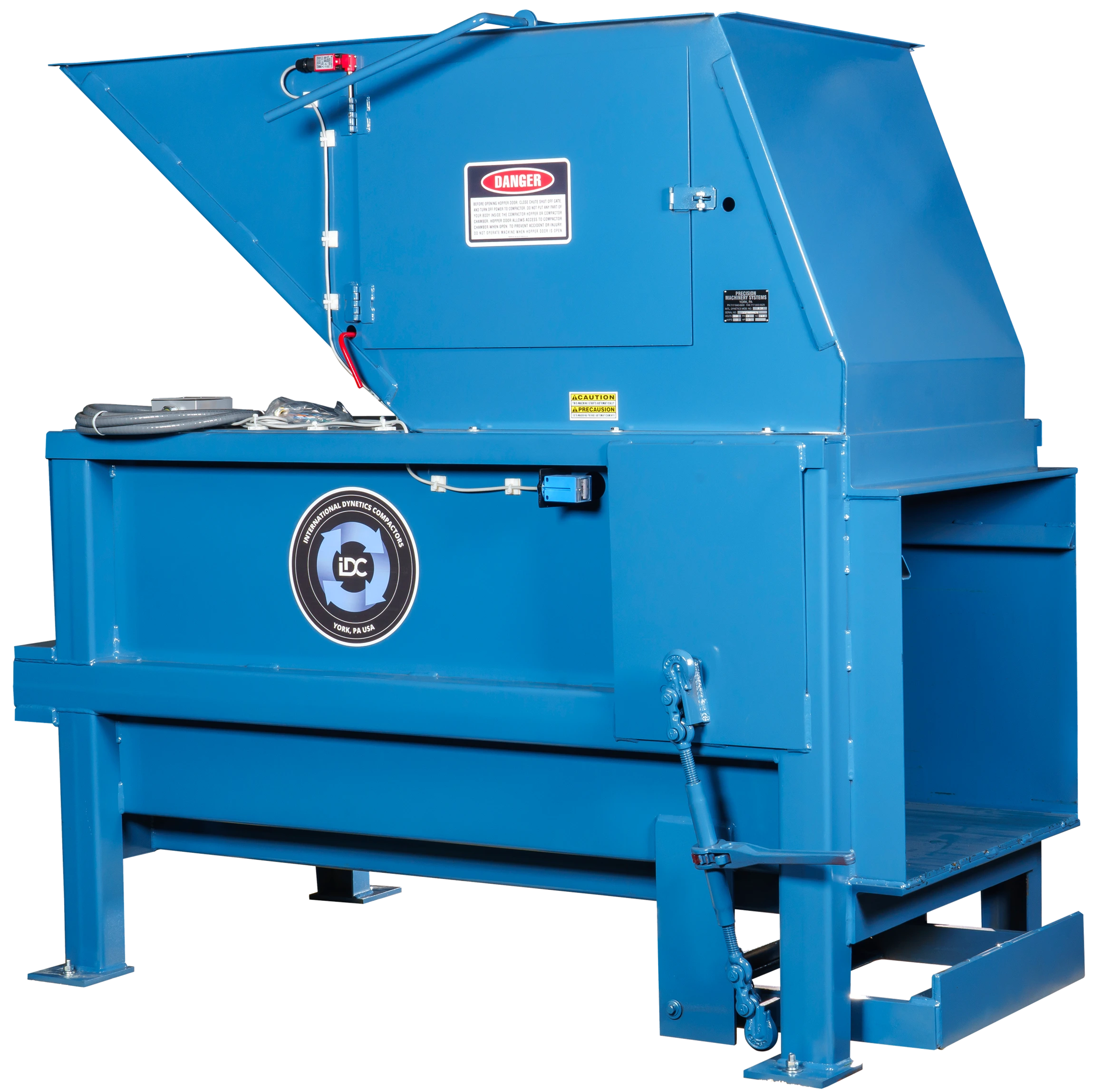

Model 820
*Photos may contain optional equipment

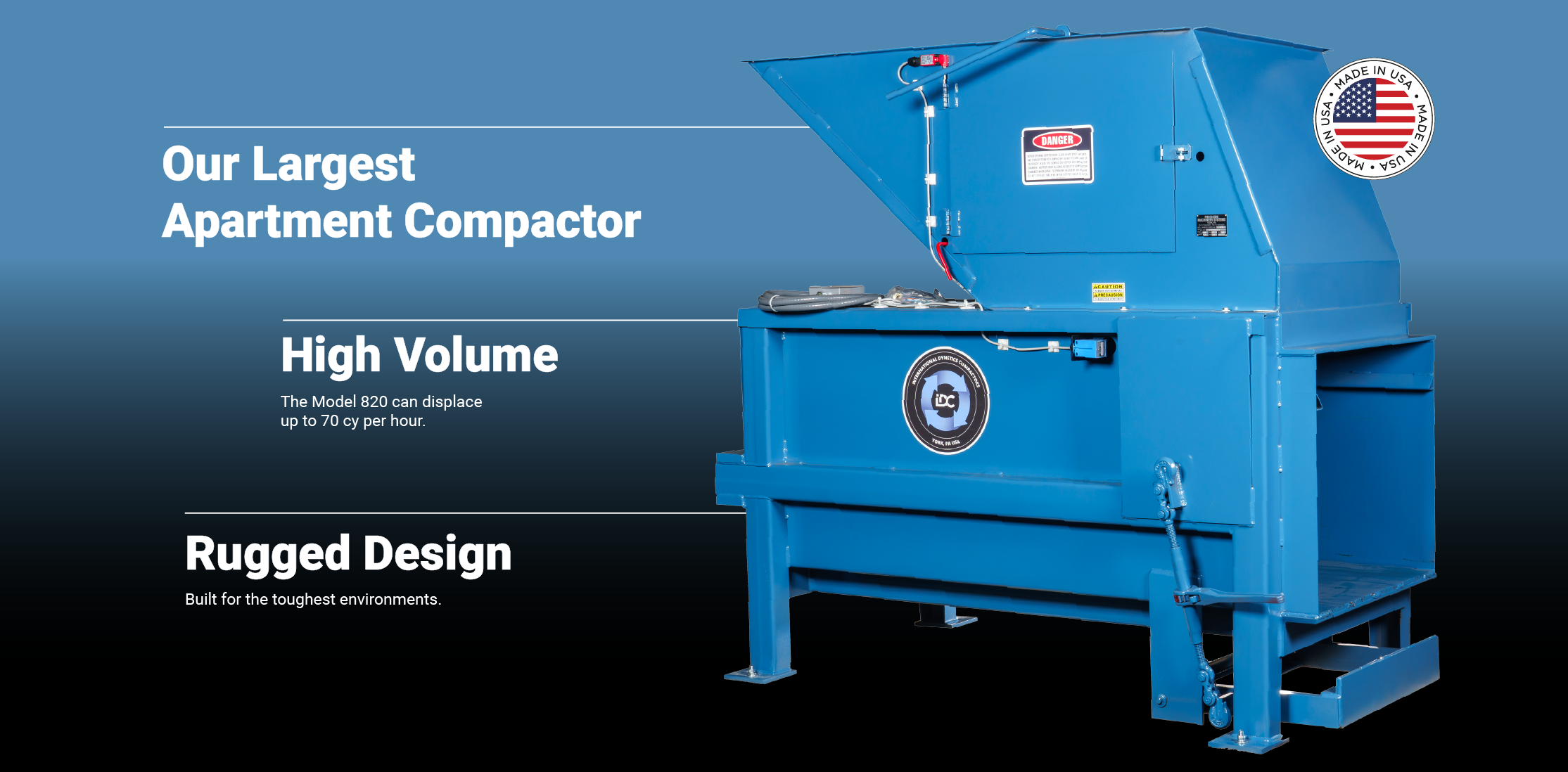

The powerhouse of our apartment-style line of compactors, the Model 820 is built for high-density residential buildings that cannot afford downtime.Built with a massive 10-cubic-foot chamber, this compactor handles your largest waste streams with ease, displacing up to 70.0 cubic yards per hour. With a 1/2″ reinforced steel ram face and a dual-plate 1/2″ steel floor, the Model 820 is built to outlast the competition in the harshest "high-rise" conditions.
An integrated photo-electric sensor manages the entire compaction cycle by automatically starting when refuse is present and shutting down when the job is complete. If an object cannot be compacted, the IDC 820 compactor will automatically shut down to prevent damage to the equipment. Once a compaction container is full, an indicator light informs the operator that it is time to replace the container. Additionally, a service access door is provided with an electronically interlocked safety switch which prevents the machine from operation when open. Built for safety, an emergency stop button is also provided. Need customizations? No problem. The Model 820 can be customized in many ways to meet the requirements of your trash room.
Request InformationResources & Warranty Information
820 Series Options and Specifications
Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.
*Additional options/customizations available upon request
| 820 | |
|---|---|
| Chamber Capacity | 10.0 cf |
| Compaction Force (M) | 21,210 lbs |
| Top Opening Throat | 27” L x 30” W |
| Ram Face Pressure (M) | 35.4 psi |
| Volume Displacement | 70.0 cy/hr |
| Cycle Time | 19 seconds |
| Size, without container (L x W x H) |
77 x 41 x 79 in |
| Weight, without container | 2,000 lbs |
| Motor Horsepower | 5 HP |
| Motor Voltage | 208/230/460 V, 3Ph, 4 Wire |
| Motor Full Load Amps (FLA) | 14.0/7.1/7.0 A |
| Hydraulic Pump | 1-Stage, 6 gpm |
| Cylinder Bore Diameter | 3” |
| Control System, Fused, AC | 115V |
