Auto-Pak^®
Model 1830-4000

High-Rise Apartments & Businesses

Hospitals

Schools

*Photos may contain optional equipment

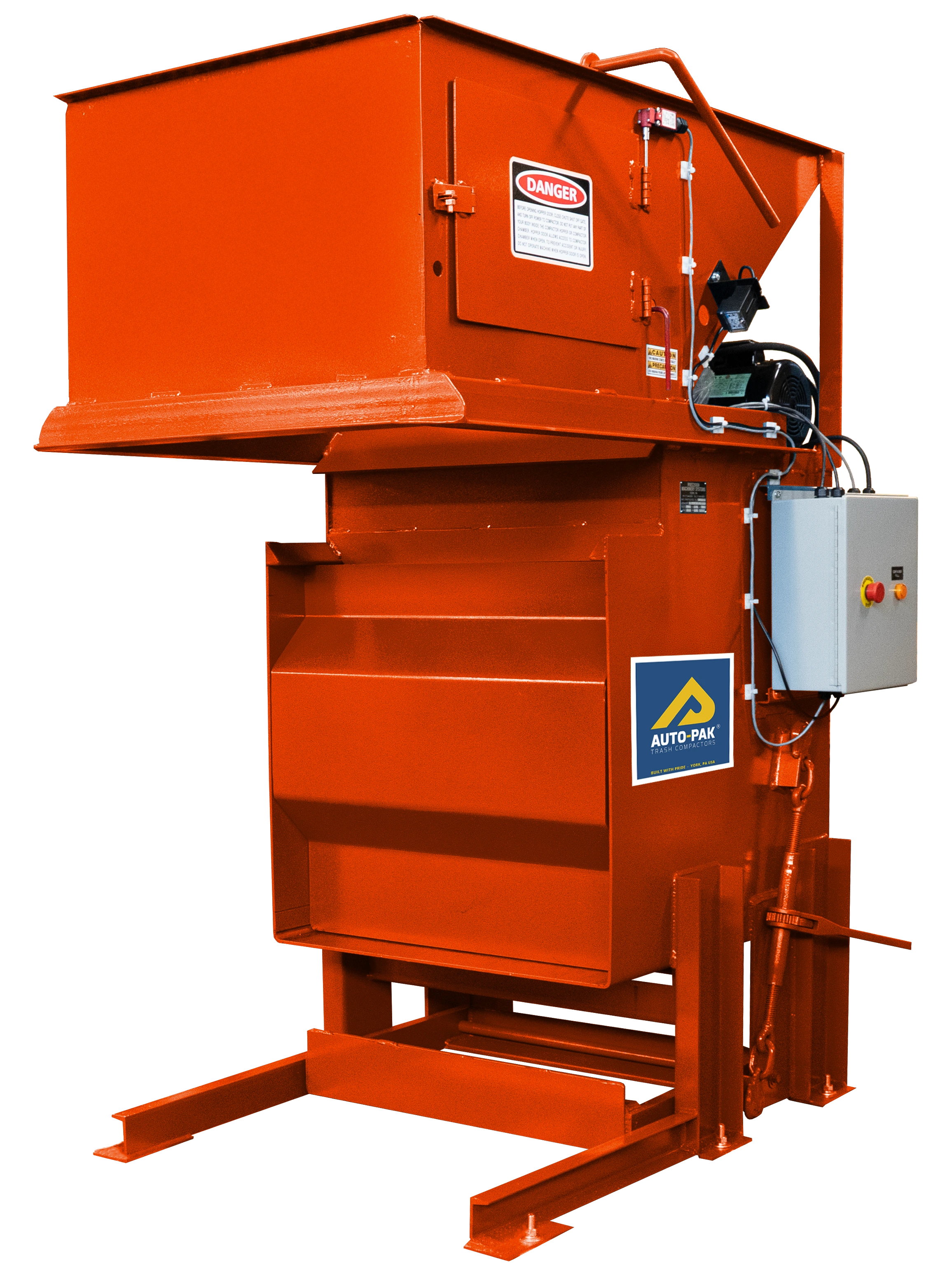

The Model 1830-4000 Container Packer is specially designed to fit into very small trash rooms where a standard machine won’t fit. It is a fully automatic, hydraulically operated packer which packs into a front or rear load compaction container. The machine body, sides and top are 1/4″ steel plate. The ram face is 1/4″ steel plate.

The hopper is constructed of 11 ga. steel plate with a 1/4″ back plate to take the impact of falling refuse. The 1830-4000 comes equipped with a 1 HP power unit. An industrial stationary container packer typically installed in multi-story buildings, this machines compacts trash received from a trash chute and compacts into two cubic yards.

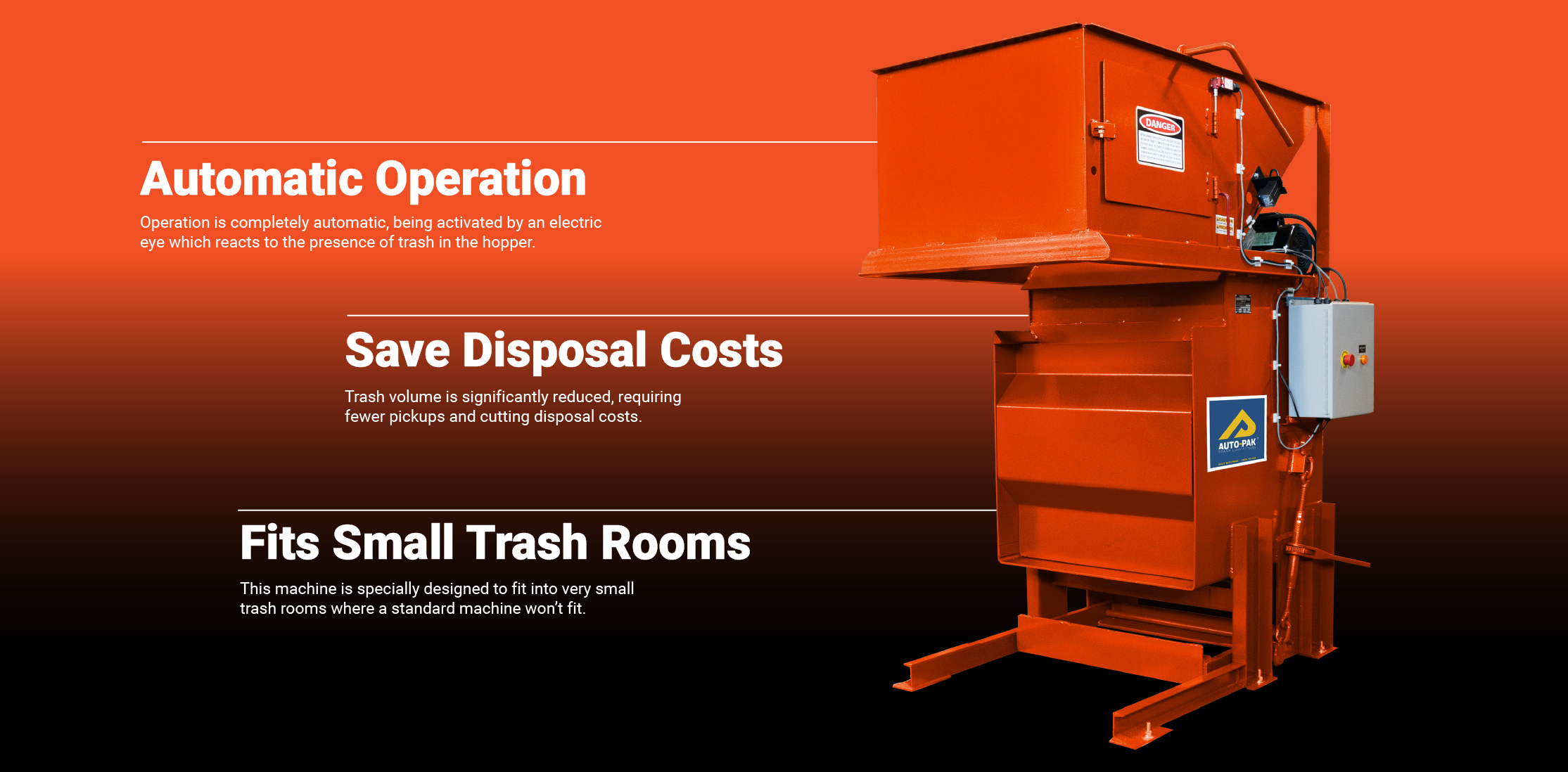

This trash compactor operates automatically by an electric eye, providing unattended operation until the container is full at which time it is removed from the machine and wheeled outside for pickup. This system reduces handling of waste and requires less custodial attention, translating into cost savings for owners and property managers. Also, because the volume of trash is significantly reduced during compaction, fewer pickups by the hauler are required, cutting disposal costs.

Request Information

Resources & Warranty Information

Download Model Files Product Spec Sheet (PDF) Limited Product Warranty (PDF) Terms and Conditions of Sale (PDF)

1830 Series Options and Specifications

Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.

*Additional options/customizations available upon request

	Standard	2000	3001	3005	4000
Chamber Capacity	7.0 cf	7.0 cf	8.0 cf	8.0 cf	N/A
Compaction Force (M)	12,090 lbs	17,580 lbs	7,850 lbs	19,625 lbs	13,815 lbs
Top Opening Throat	22” L x 30” W	22” L x 30” W	26” L x 30” W	26” L x 30” W	23” L x 30” W
Ram Face Pressure (M)	22.00 psi	32.77 psi	14.5 psi	36.3 psi	14.50 psi
Volume Displacement	15.6 cy/hr	43.4 cy/hr	24.0 cy/hr	65.0 cy/hr	N/A
Cycle Time	44 seconds	22 seconds	57 seconds	17 seconds	50 seconds
Size, without container (L x W x H)	71 x 40 x 68 in	71 x 40 x 68 in	50 x 40 x 68 in	50 x 40 x 68 in	54 x 44 x 75 in
Weight, without container	1,500 lbs	1,600 lbs	1,450 lbs	1,550 lbs	950 lbs
Motor Horsepower	1 HP	5 HP	1 HP	5 HP	1 HP
Motor Voltage	115/208/230 V, 1Ph	208/230/460 V, 3Ph, 4 Wire	115/208/230 V, 1Ph	208/230/460 V, 3Ph, 4 Wire	115/208/230 V, 1Ph
Motor Full Load Amps (FLA)	14.0/7.1/7.0 A	14.9-13.4/6.7 A	14.0/7.1/7.0 A	14.9-13.4/6.7 A	14.0/7.1/7.0 A
Hydraulic Pump	1-Stage, 2.4 gpm	1-Stage, 6 gpm	1 Stage, 2.4 gpm	1-Stage, 6 gpm	1-Stage, 2.4 gpm
Cylinder Bore Diameter	3.5”	3.5”	(2) 2.5”	(2) 2.5”	4”
Control System, Fused, AC	115V	115V	115V	115V	115V

1830 Series Dimensions

	Standard	2000	3001	3005	4000
Dim “A” – Machine Length without Container	72-1/2”	72-1/2”	50”	50”	51”
Dim “B” – Machine Length with Front Load Container	147”*	147”*	125”*	125”*	102”*
Dim “C” – Room Length Minimum with Front Load Container	159”*	159”*	137”*	137”*	114”*

*Note: For Rear Load Containers, Subtract 7”

CONTAINER PACKERS

View Our Other 1830 Series Models

The 1830 Series Trash Compactors are normally installed in street level trash rooms and used in conjunction with a trash chute system in high-rise buildings. Operation is automatic, with the unit being activated by an electric eye which senses trash in the loading hopper. The units can also be hand fed. These units are typically used with two cubic yard compaction containers which, when full, are wheeled outside for pick-up by a commercial trash service. The unit automatically shuts down when the container is full.
