Precision Machinery Systems LLC | Auto-Pak® Model Gobbler 2

*Photos may contain optional equipment

Auto-Pak^®
Model Gobbler 2

High-Rise Apartments & Businesses

Hospitals

Schools

*Photos may contain optional equipment

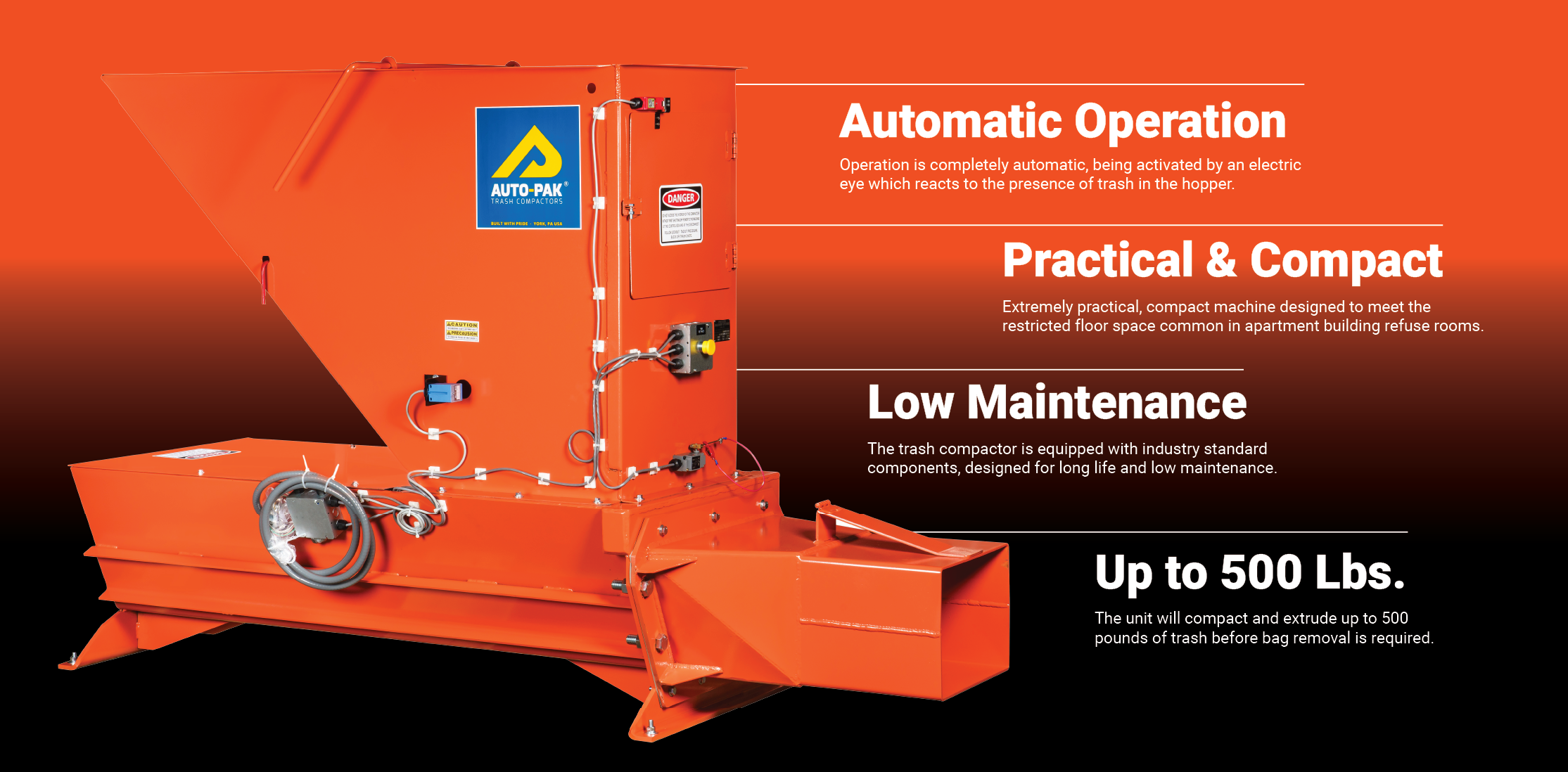

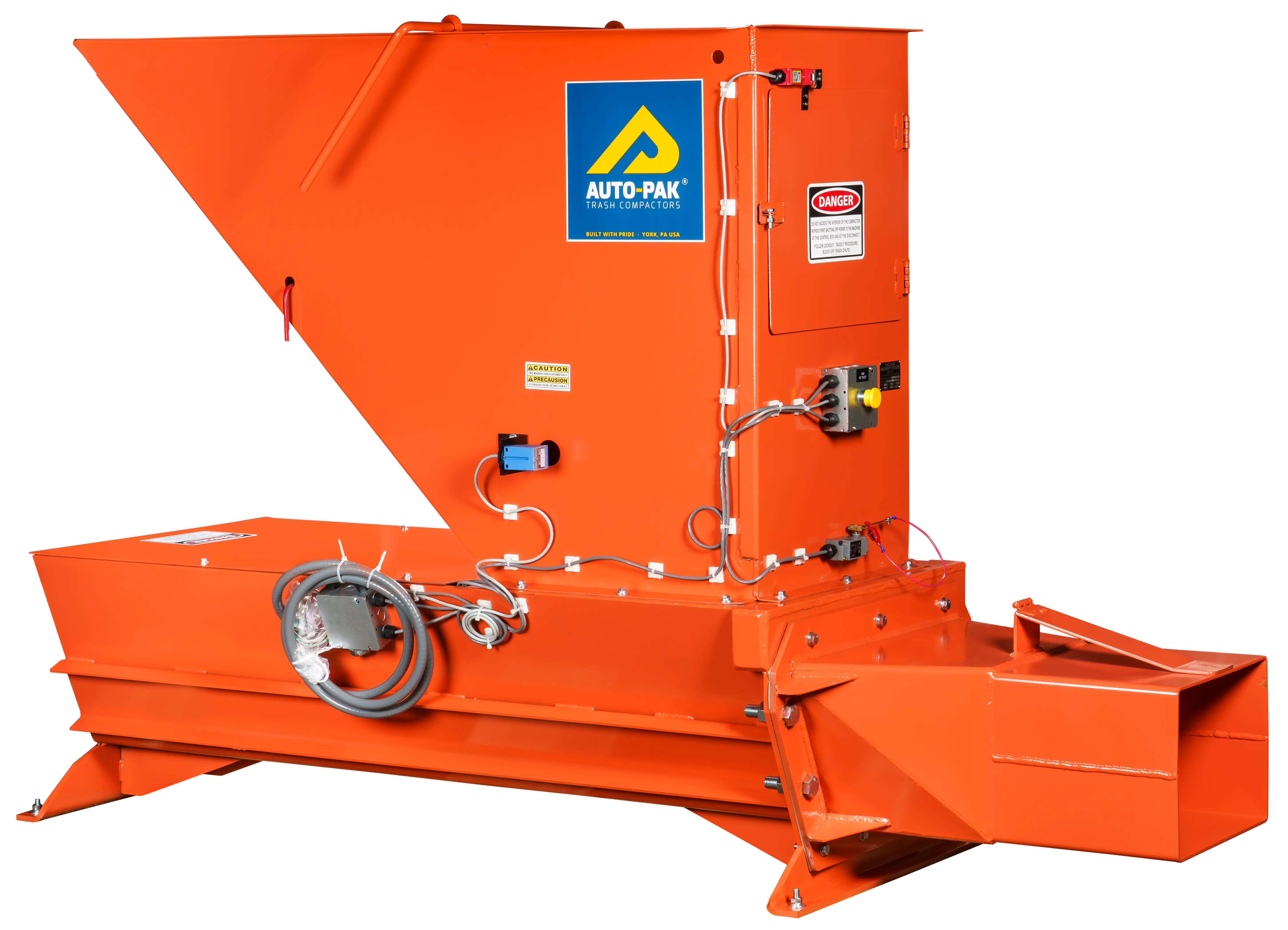

The Auto-Pak™ Model Gobbler 2 is a bag packer normally installed in below grade trash rooms, used in conjunction with a trash chute system in High-rise Apartment Buildings. The unit typically compacts and extrudes trash into heavy duty plastic bags.

The Gobbler 2 is the mid-size model in the series, providing high displacement and compaction force. Operation is completely automatic, being activated by an electric eye which reacts to the presence of trash in the hopper. The system automatically shuts down when the bag is full. The compactor body is constructed of 3/8″ steel. The hopper is 11 ga. steel with a 1/4″ back plate to take the impact of falling material. The ram features 1” thick shearing teeth to help process the toughest of refuse. It comes with an electrically interlocked hopper door, located on the hopper front, for service access.

Single or multiple bags are available. Using the multiple bag system, the unit will compact and extrude up to 500 lbs. of trash before bag removal is required. The slug of compacted trash is simply broken at segmented points and tied off to encase each segment. This system is ideal for times when the machine may be unattended, such as over weekends, etc.

Request Information

Resources & Warranty Information

Download Model Files Product Spec Sheet (PDF) Limited Product Warranty (PDF) Terms and Conditions of Sale (PDF)

Gobbler Series Options and Specifications

Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.

*Additional options/customizations available upon request

	Gobbler 1	Gobbler 2	Gobbler 16
Chamber Capacity	2.9 cf	3.0 cf	3.3 cf
Ram Face Pressure (N)	94 psi	130 psi	143 psi
Ram Face Pressure (M)	136 psi	166 psi	181 psi
Compaction Force (N)	22,600 lbs	32,400 lbs	32,400 lbs
Compaction Force (M)	37,680 lbs	41,230 lbs	41,230 lbs
Volume Displacement	9.6 cy/hr	11.1 cy/hr	14.6 cy/hr
Motor Horsepower	5 HP	5 HP	7.5 HP
Motor Voltage	208/230/460 V, 3Ph, 4 Wire	208/230/460 V, 3Ph, 4 Wire	208/230/460 V, 3Ph, 4 Wire
Motor Full Load Amps (FLA)	14.9-13.4/6.7 A	14.9-13.4/6.7 A	20.0/19.0/9.5 A
Control System, AC	115 V Fused	115V Fused	115V Fused
Cycle Time	40 seconds	37 seconds	30 seconds
Cylinder Diameter	4"	5"	5"
Reservoir Capacity	10 gallons	10 gallons	10 gallons
Weight	1,550 lbs	1,950 lbs	2,000 lbs

Gobbler Series Dimensions

	Gobbler 1	Gobbler 2	Gobbler 16
Chamber Length	1’ – 7 ½”	2’ – 0”	2’ – 0”
Chamber Width	2’ – 0”	2’ – 0”	1’ – 9 ½”
Machine Height	5’ – 10”	5’ – 6”	5’ – 8”
Machine Length	6’ – 3”	8’ – 5”	9’ – 5”
Machine Width	2’ – 4”	2’ – 11”	2’ – 11”
Room Length	9’ – 3”	11’ – 2”	12’ – 5”
Room Width	4’ – 2”	5’ – 0”	5’ – 0”

BAG PACKERS

View Our Other Gobbler Series Models

The Gobbler Series Trash Compactors are bag packers normally installed in below grade trash rooms, used in conjunction with a trash chute system in High-rise Apartment Buildings. The units can also be hand fed. The unit compacts and extrudes trash into heavy duty bags. Single or multiple bags are available. Using the multiple bag system, the unit will compact and extrude up to 500 Ibs. of trash before bag removal is required. This system is ideal for times when the machine may be unattended, such as over weekends, etc. Operation is completely automatic, being activated by an electric eye which reacts to the presence of trash in the hopper. The system automatically shuts down when the bag is full.
