International Dynetics
Model 520ESII

High-Rise Apartments & Businesses

Hospitals

Schools

*Photos may contain optional equipment

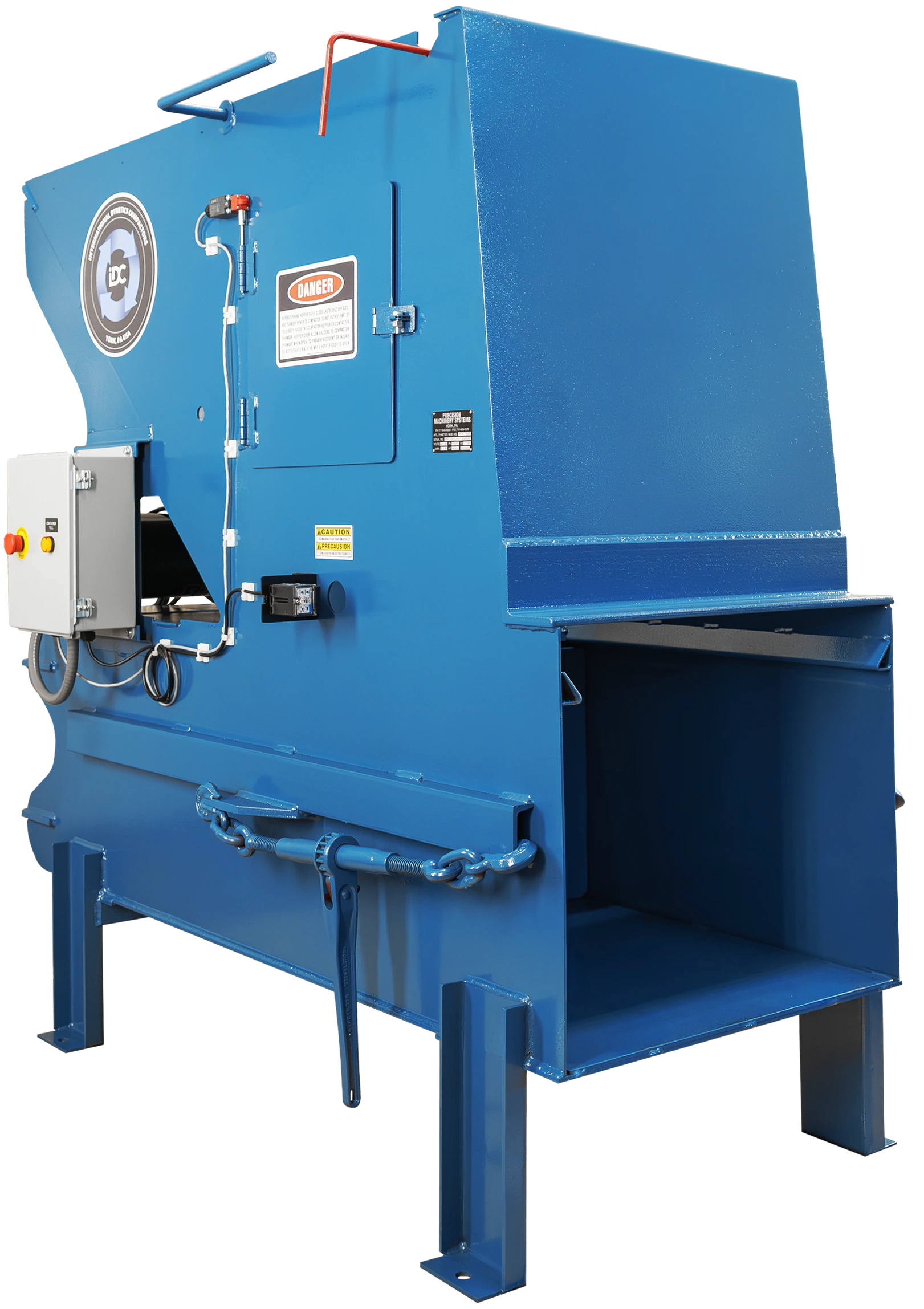

The Model 520ESII Container Packer is a fully automatic, hydraulically operated packer capable of displacing up to 19 cu. yds. of trash per hour, packing into a front or rear load compaction container. The machine body, sides and top are 3/16″ steel plate reinforced with 3″ structural channels for rigidity. Ram is constructed of 1/4″ sides and top with 1/4″ steel plate bottom. The ram face is 1/2″ steel plate, reinforced. Header bar is 4″ x 4″ x 3/8″ steel angle. The hopper is constructed of 11 ga. steel plate with a 1/4″ back plate to take the impact of falling refuse.

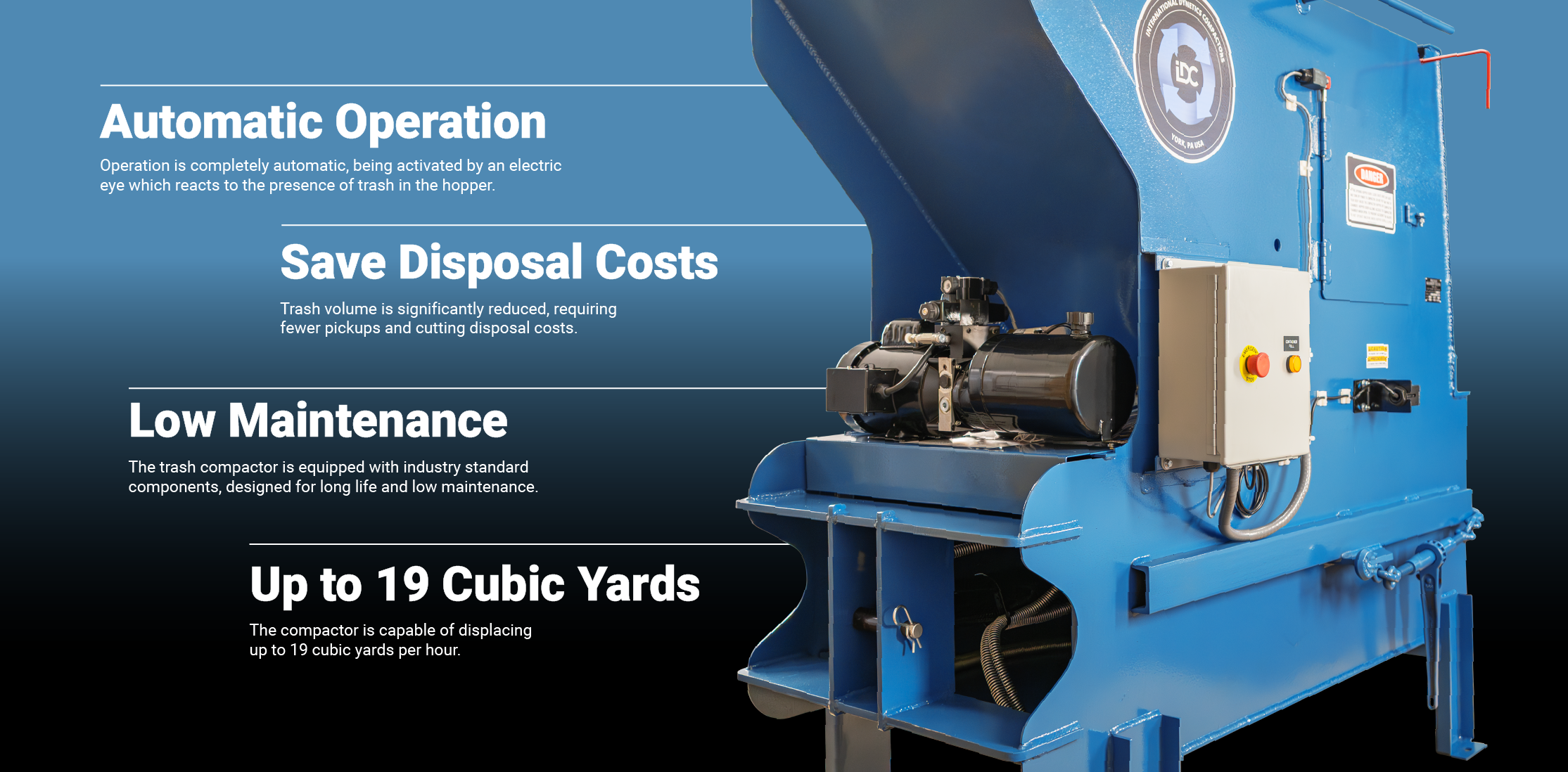

The floor is 1/2″ thick steel comprised of two 1/4″ plates. One floor plate is part of the frame and the other is replaceable. The Model 520ESII provides an economical solution with a 1 HP power unit. An industrial stationary container packer typically installed in multi-story buildings, this machine compacts trash received from a trash chute and compacts into two cubic yard front or rear load compaction containers. The machine operates automatically by an electric eye, providing unattended operation until the container is full at which time it is removed from the machine and wheeled outside for pick-up.

Request Information

Resources & Warranty Information

Download Model Files Product Spec Sheet (PDF) Limited Product Warranty (PDF) Terms and Conditions of Sale (PDF)

520 Series Options and Specifications

Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.

*Additional options/customizations available upon request

	520A	520ESII	520SS	520T1	520T5
Chamber Capacity	6.5 cf	6.5 cf	N/A	8.0 cf	8.0 cf
Compaction Force (M)	15,075 lbs	10,360 lbs	13,815 lbs	7,850 lbs	19,625 lbs
Top Opening Throat	24" L x 26" W	24" L x 26" W	23" L x 30" W	22" L x 30" W	26" L x 30" W
Ram Face Pressure (M)	32.8 psi	22.60 psi	14.5 psi	14.5 psi	36.3 psi
Volume Displacement	54.0 cy/hr	19.0 cy/hr	N/A	24.0 cy/hr	65.0 cy/hr
Cycle Time	16 seconds	44 seconds	60 seconds	57 seconds	17 seconds
Size, without container (L x W x H)	66 x 38 x 67 in	66 x 38 x 67 in	51 x 38 x 75 in	50 x 44 x 68 in	50 x 44 x 68 in
Weight, without container	1,650 lbs	1,500 lbs	950 lbs	1,450 lbs	1,550 lbs
Motor Horsepower	5 HP	1 HP	1 HP	1 HP	5 HP
Motor Voltage	208/230/460 V, 3Ph, 4 Wire	115/208/230 V, 1Ph	115/208/230 V, 1Ph	115/208/230 V, 1Ph	208/230/460 V, 3Ph, 4 Wire
Motor Full Load Amps (FLA)	14.9-13.4/6.7 A	14.0/7.1/7.0 A	14.0/7.1/7.0 A	14.0/7.1/7.0 A	14.9-13.4/6.7 A
Hydraulic Pump	1-Stage, 6 gpm	1-Stage, 2.4 gpm	1-Stage, 2.4 gpm	1-Stage, 2.4 gpm	1-Stage, 6 gpm
Cylinder Bore Diameter	3"	3"	4"	(2) 2.5"	(2) 2.5"
Control System, Fused, AC	115V	115V	115V	115V	115V

520 Series Dimensions

	520A	520ESII	520SS	520T1	520T5
Dim “A” – Machine Length with Front Load Container	142"*	142"*	102"*	125"*	125"*
Dim “B” – Room Length Minimum with Front Load Container	154"*	154"*	114"*	137"*	137"*

*Note: For Rear Load Containers, Subtract 7”

CONTAINER PACKERS

View Our Other 520 Series Models

The Model 520 Series Trash Compactors are normally installed in street level trash rooms and used in conjunction with a trash chute system in high-rise buildings. Operation is automatic, with the unit being activated by an electric eye which senses trash in the loading hopper. These units are typically used with two cubic yard compaction containers which, when full, are wheeled outside for pick-up by a commercial trash service. The unit automatically shuts down when the container is full.
