International Dynetics
Model XM-40
Schools
*Photos may contain optional equipment

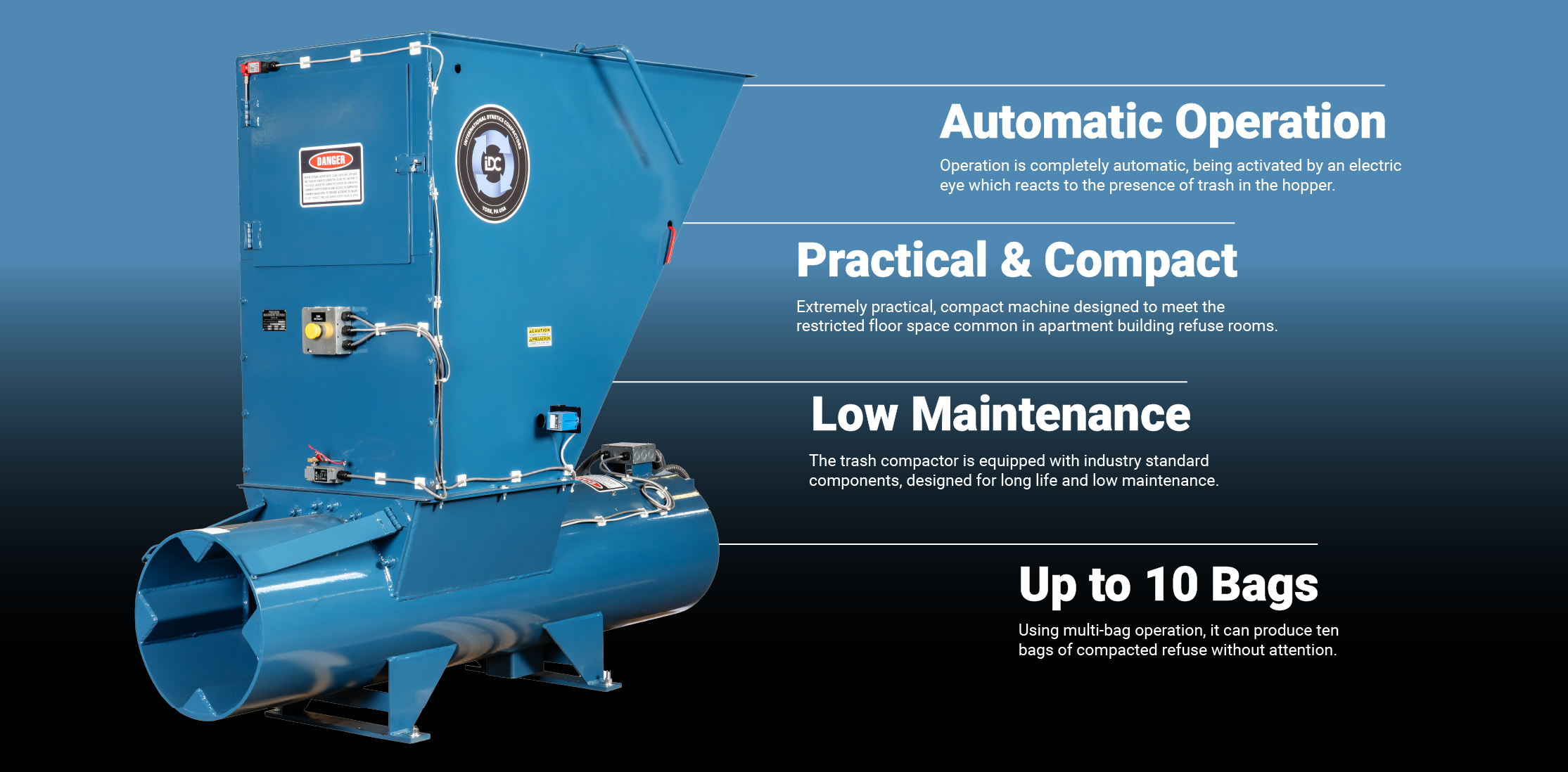

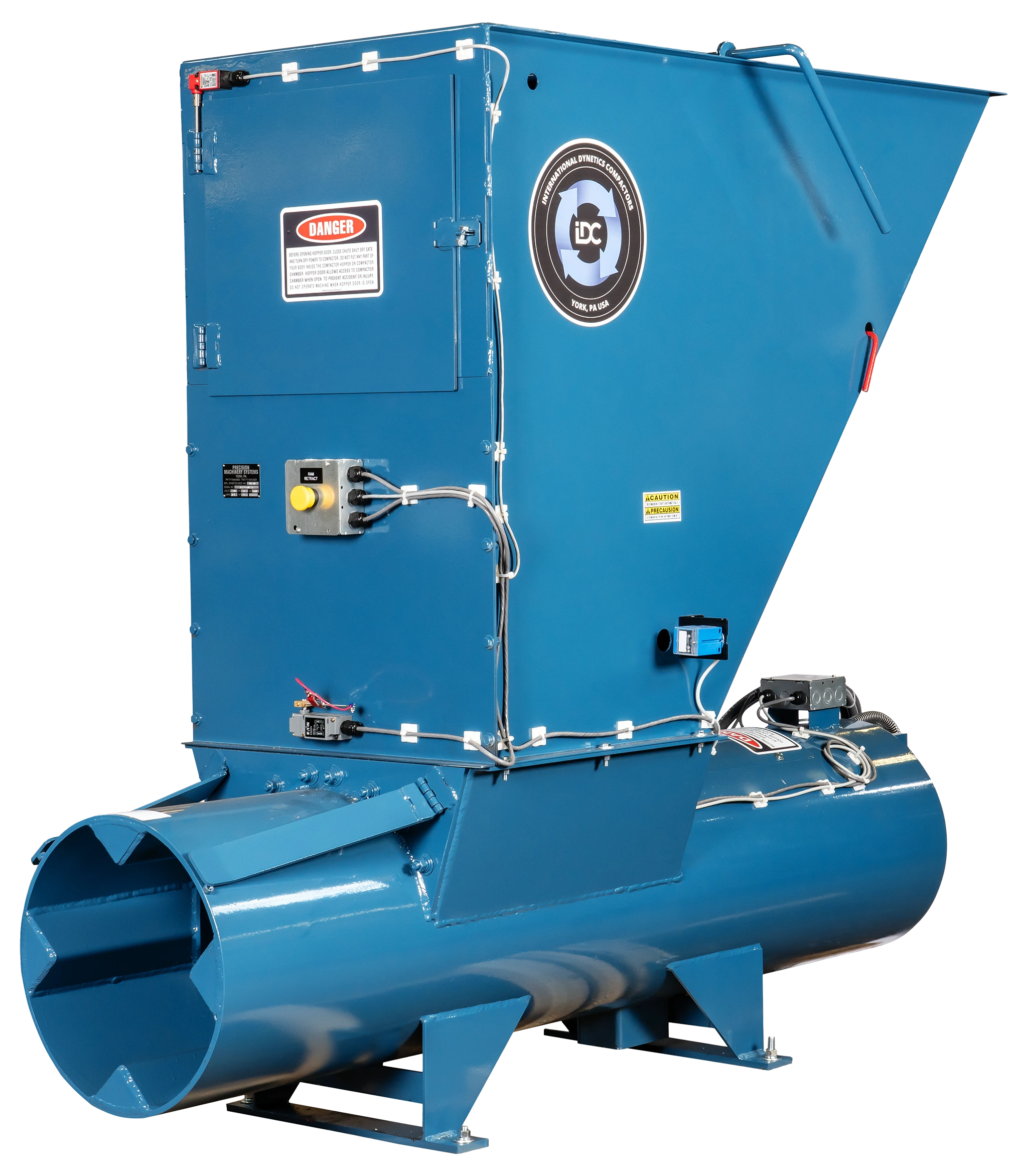

The Model XM-40 Bag Packer is a hydraulically operated concentric ram trash compactor utilizing the extrusion principle. Refuse is forced through the nose of the compactor which contains a unique set of restrictors. The trash compactor body and compaction chamber are rugged and durable. They are tubular in shape, forming one continuous body of high strength 3/8″ steel plate. The ram is similarly constructed of 1/4″ plate with a compaction face of 3/4″ plate.
The hopper is constructed of 11 gauge steel, with a 1/4″ impact plate. The Model XM-40 is suitable for all chute fed applications of residential type refuse. An extremely rugged machine, trash can be compacted into single or multiple bag systems. Using multi-bag operation, it can produce ten bags of compacted refuse without attention, an ideal solution to time periods when no maintenance personnal are available. The extruded tube of refuse is simply separated into individual bags for removal. A photoelectric sensor starts the compaction cycle when refuse enters the hopper and turns the machine off when hopper is empty.
The trash compactor automatically shuts off to prevent damage from an oversized or uncrushable object. A service access door is provided on the front of the hopper, equipped with an electrically interlocked safety switch which prevents the machine from operating if the access door is open.
Request InformationResources & Warranty Information
XM-40 Series Options and Specifications
Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.
*Additional options/customizations available upon request
| XM-40 | XM-40M | |
|---|---|---|
| Chamber Capacity | 3.3 cf | 2.7 cf |
| Compaction Force (M) | 38,000 lbs | 38,000 lbs |
| Ram Face Pressure (M) | 165 psi | 210 psi |
| Volume Displacement | 8.6 cy/hr | 10.0 cy/hr |
| Cycle Time | 45 seconds | 35 seconds |
| Overall Dimensions (L x W x H) | 80 x 29 x 70 in | 71 x 29 x 64 in |
| Weight | 1,500 lbs | 1,400 lbs |
| Container Type | Single/Multiple Bag | Single/Multiple Bag |
| Motor Horsepower | 5 HP | 5 HP |
| Motor Voltage | 208/230/460 V, 3Ph, 4 Wire | 208/230/460 V, 3Ph, 4 Wire |
| Motor Full Load Amps (FLA) | 14.9-13.4/6.7 A | 14.9-13.4/6.7 A |
XM-40 Series Dimensions
| A | B | C | D | E | F | |
|---|---|---|---|---|---|---|
| XM-40 | 2' - 0" | 2' - 0" | 3' - 0" | 5' - 10 ¼" | 6' - 8" | 10' - 3 ½" |
| XM-40M | 1' - 9" | 2' - 0" | 2' - 7 ½" | 5' - 3 ¾" | 5' - 10 ½" | 9' - 5" |
BAG PACKERS
View Our Other XM-40 Series Models
The Model XM-40 Series Trash Compactors are bag packers normally installed in below grade trash rooms, used in conjunction with a trash chute system in High-rise Apartment Buildings. These trash compactors can also be hand fed. This compactor compacts and extrudes trash into heavy duty trash bags. Single or multiple bags are available. Using the multiple bag system, the unit will compact and extrude up to 500 lbs. of trash before bag removal is required. This system is ideal for times when the machine may be unattended, such as over weekends, etc. Operation is completely automatic, being activated by an electric eye which reacts to the presence of trash in the hopper. This system automatically shuts down when the bag is full.
This full-sized trash compactor is equipped with an electrically interlocked hopper door, located on the hopper front, for service access.
Learn More
Slightly shorter trash compactor for applications where a standard length trash compactor will not fit. Is also equipped with an electrically interlocked hopper door, located on the hopper front, for service access.
Learn More
