Toronita™
Model 60XP
Recycling Facilities
*Photos may contain optional equipment

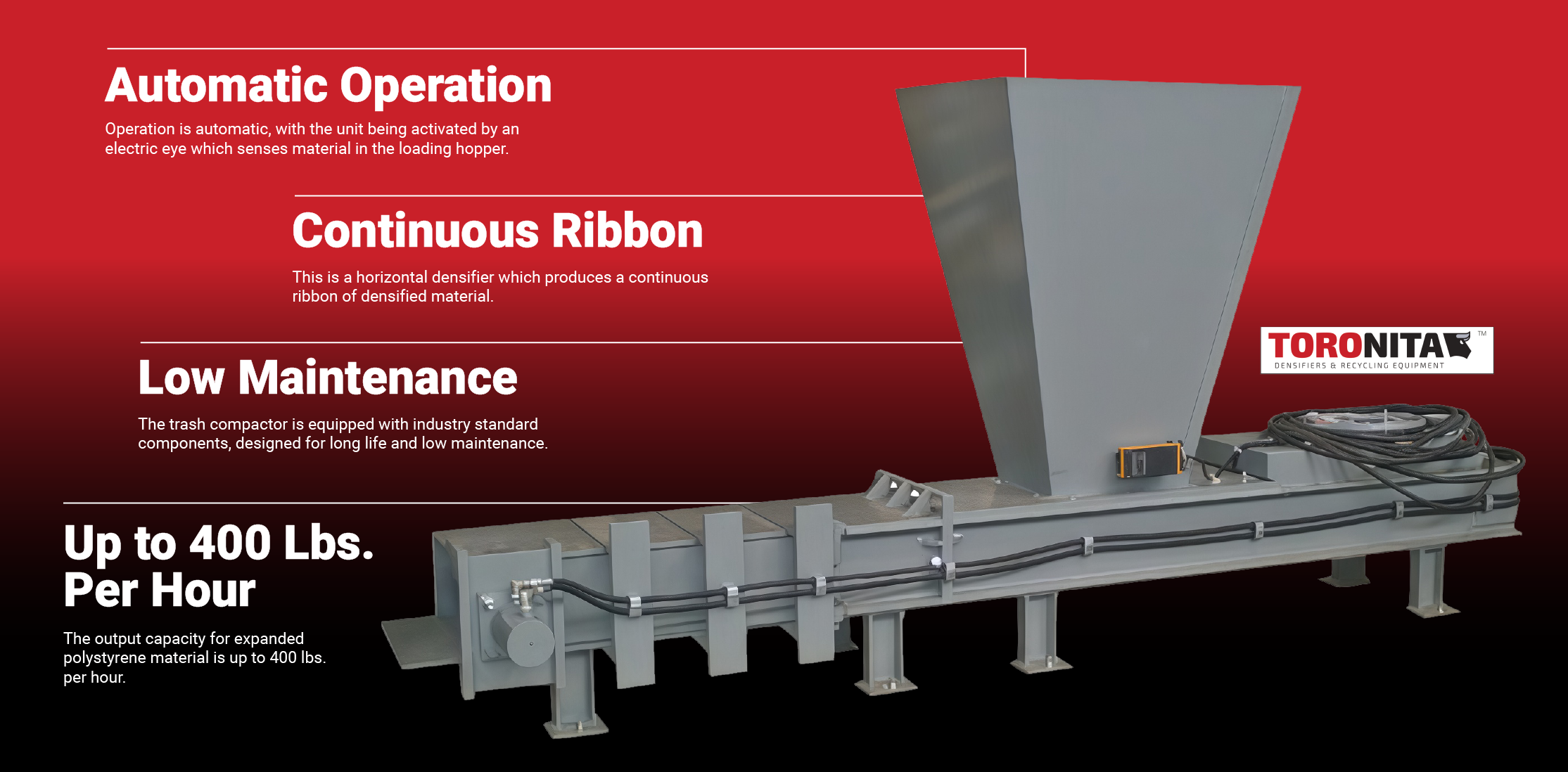

The Toronita™ Model 60XP EPS Foam Densifier is a horizontal machine which produces a continuous ribbon of densified material. The densified ribbon can easily be broken into manageable segments for handling and stacking. Densification takes place in the snout of the machine due to pressure applied by a side control cylinder.
Operation is automatic, with the unit being activated by an electric eye which senses material in the loading hopper. Optional material prebreaker, air conveyor and storage bag over densifier hopper provide an efficient system for densifying large volumes of expanded polystyrene. This model is equipped with a power feed section on the hopper which provides a higher throughput without moving up to the next larger machine.
The output capacity for expanded polystyrene material is up to 400 lbs. per hour, vs. up to 200 lbs. for a standard Model 60X. The machine is equipped with a 15 HP motor operating at 230 or 460 volts, with a 180 gallon reservoir.
Request InformationResources & Warranty Information
X Series Options and Specifications
Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.
*Additional options/customizations available upon request
| 15X | 30X | 30XP | 60X | 60XP | |
|---|---|---|---|---|---|
| Output Capacity | Up to 50 lbs / hr | Up to 100 lbs / hr | Up to 150 lbs / hr | Up to 200 lbs / hr | Up to 400 lbs / hr |
| Electrical | 208-230-460 / 3 phase / 60V / HZ | 208-230-460 / 3 phase / 60V / HZ | 208-230-460 / 3 phase / 60V / HZ | 208-230-460 / 3 phase / 60V / HZ | 208-230-460 / 3 phase / 60V / HZ |
| Cycle Time | 60 seconds | 60 seconds | 60 seconds | 60 seconds | 60 seconds |
| Hopper Volume | 2.8 cf | 11 cf | 11 cf | 20 cf | 20 cf |
| Hydraulic Reservoir Capacity | 20 gallons | 30 gallons | 30 gallons | 180 gallons | 180 gallons |
| Densified Ribbon Size | 12 x 8 in | 15 x 9 in | 15 x 9 in | 20 x 10 in | 20 x 10 in |
| Weight | 2,500 lbs | 3,600 lbs | 3,800 lbs | 5,300 lbs | 5,600 lbs |
| Overall Dimensions (L x W x H) | 106 x 31 x 65 in | 142 x 34 x 68 in | 142 x 34 x 68 in | 216 x 39 x 58 in | 216 x 39 x 58 in |
| Motor Horsepower | 5 HP | 10 HP | 10 HP | 15 HP | 15 HP |
X Series Dimensions
| A | B | C | D | E | F | G | H | I | |
|---|---|---|---|---|---|---|---|---|---|
| 15X | 8' 10" | 2' 7" | 5' 5" | 2' 10" | 2' 2" | 1' 5" | 1' 1" | N/A | N/A |
| 30X | 1' 10" | 2' 10" | 5' 8" | 3' 2" | 2' 6" | 1' 6" | 1' 2" | N/A | N/A |
| 60X | 18' 0" | 3' 3" | 4' 10" | 5' 7" | 2' 8" | 2' 6" | 1' 8" | 5' 4" | 2' 8" |
View Our Other X Series Models
Our EPS Foam Densifiers are designed to extrude a continuous ribbon of densified material. They densify polystyrene and other materials up to 25 lbs. per cubic foot while reducing volume up to 50:1. Densification of 16 lbs. per cubic foot will fill a trailer with 40,000 lbs. of densified material-reduces transportation costs. Stacks on pallets for convenient storage and shipping. Operates on pressure – no heat or chemicals to degrade polymer. Designed for low maintenance and easy operation.
The output capacity for expanded polystyrene material is up to 50 lbs. per hour. The machine is equipped with a 5 HP motor operating at 208, 230 or 460 volts, with a 20 gallon reservoir.
Learn More
The output capacity for expanded polystyrene material is up to 100 lb. per hour. The machine is equipped with a 10 HP motor operating at 208, 230 or 460 volts, with a 30 gallon reservoir.
Learn More
The output capacity for expanded polystyrene material is up to 150 lbs. per hour, vs. 100 lbs. per hour for a standard model 30X. The machine is equipped with a 10 HP motor operating at 208, 230 or 460 volts, with a 30 gallon reservoir.
Learn More
The output capacity for expanded polystyrene material is up to 200 lbs. per hour. The machine is equipped with a 15 HP motor operating at 230 or 460 volts, with a 180 gallon reservoir.
Learn More
The output capacity for expanded polystyrene material is up to 400 lbs. per hour, vs. up to 200 lbs. for a standard Model 60X. The machine is equipped with a 15 HP motor operating at 230 or 460 volts, with a 180 gallon reservoir.
Learn More
