International Dynetics
Model 10T
Schools
*Photos may contain optional equipment

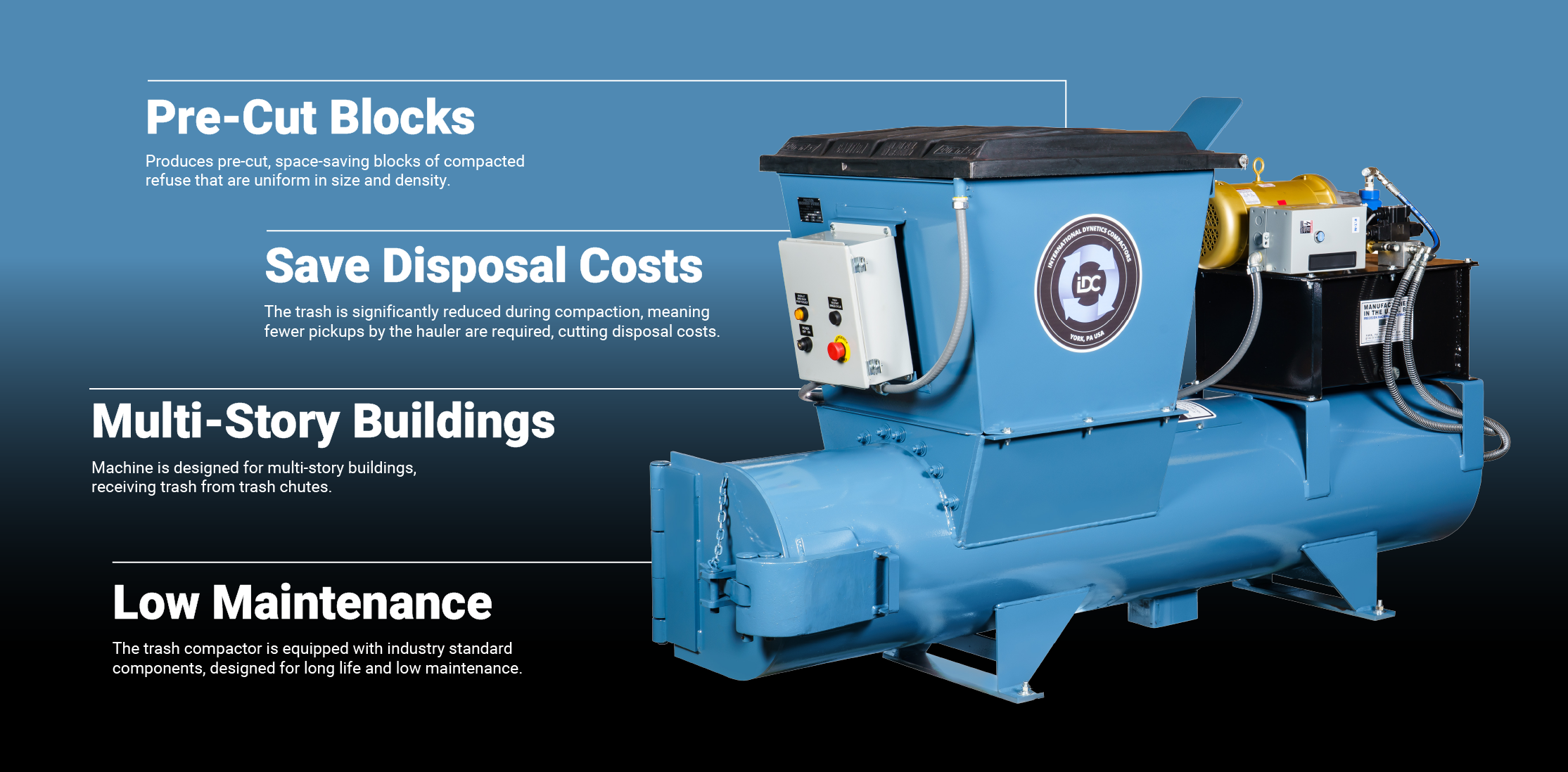

The Model 10T Bag Packer is a single bag, bulkhead trash compactor which produces pre-cut, space-saving blocks of compacted refuse. These blocks are uniform in size and density. The Chute Fed Model is designed for multi-story buildings, receiving trash from the building trash chute. The Hand Fed Model has varied applications, such as schools, hospitals, etc.

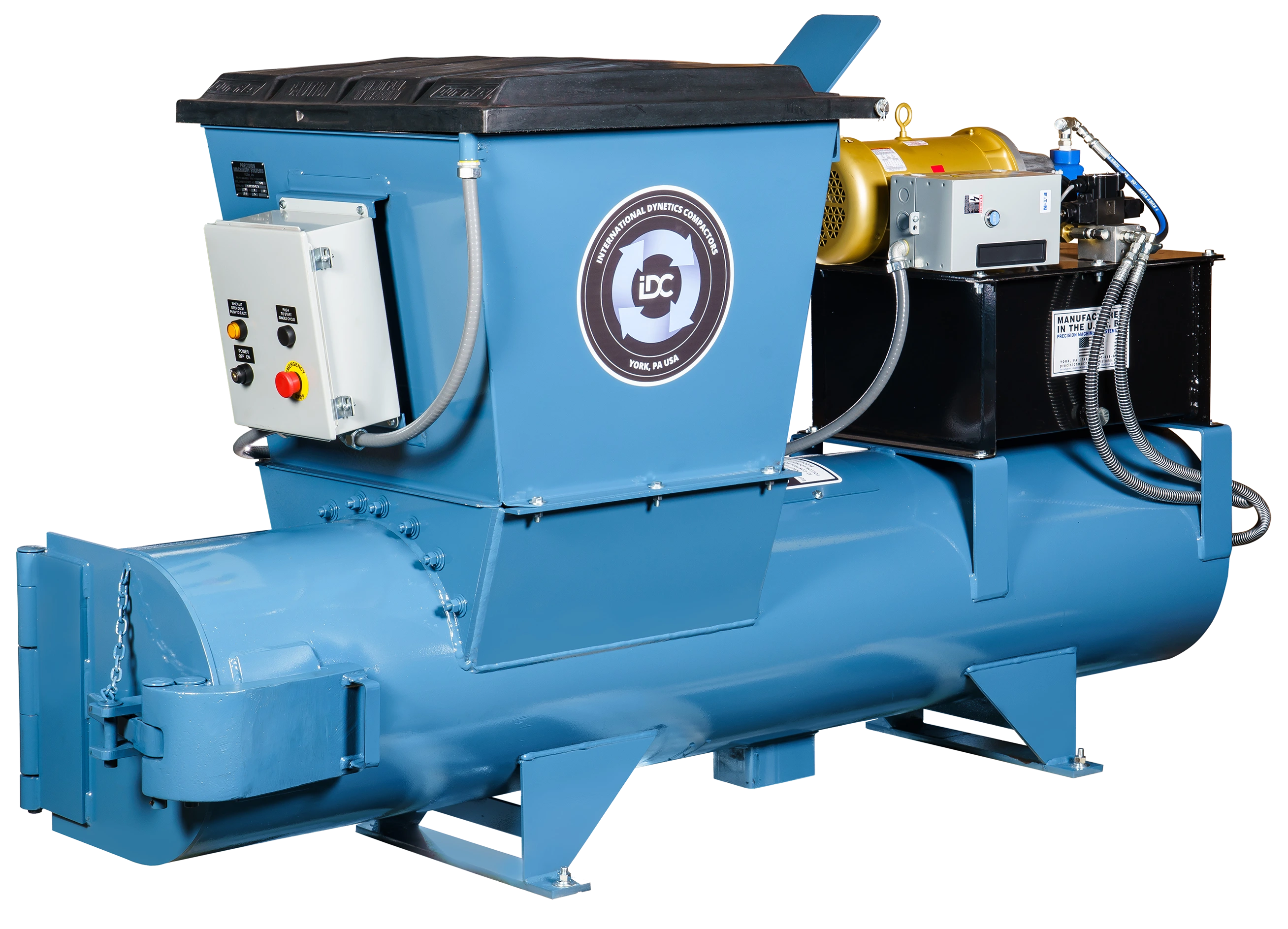

The Model 10T Bag Packer is a hydraulically operated concentric ram compactor with hardened cast ductile iron shear teeth compacting against a heavily reinforced door with a quick opening latch. The compaction body and compaction chamber are tubular in shape and form one continuous integral body of structural 3/8″ steel plate. The ram is similarly constructed of 1/4″ plate with a compaction face of 3/4″ plate. Operation is exceptionally quiet, powered by a 5 HP power unit. Heavy duty, 4 mil plastic bags are suggested for use with this machine.
Request InformationResources & Warranty Information
10T Series Options and Specifications
Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.
*Additional options/customizations available upon request
| 10T | 10TM | |
|---|---|---|
| Chamber Capacity | 2.9 cf | 2.6 cf |
| Ram Face Pressure | 88 psi | 88 psi |
| Compaction Force | 20,000 lbs | 20,000 lbs |
| Volume Displacement | 14.8 cy/hr | 15.7 cy/hr |
| Cycle Time | 26 seconds | 22 seconds |
| Overall Dimensions (L x W x H) | 90 x 27 x 75 in | 75 x 27 x 69 in |
| Weight | 1,500 lbs | 1,400 lbs |
| Container Type | Single Bag | Single Bag |
| Motor Horsepower | 5 HP | 5 HP |
| Motor Voltage | 208/230/460 V, 3Ph, 4 Wire | 208/230/460 V, 3Ph, 4 Wire |
| Motor Full Load Amps (FLA) | 14.9-13.4/6.7 A | 14.9-13.4/6.7 A |
10T Series Dimensions
| A | B | C | D | E | F | |
|---|---|---|---|---|---|---|
| Model 10T | 1' - 9 ½" | 1' - 11 ½" | 7' - 6" | 6' - 3" | 4' - 3" | 10' - 7" |
| Model 10TM | 1' - 8" | 1' - 11 ½" | 6' - 3 ½" | 5' - 9" | 4' - 3" | 9' - 0" |
BAG PACKERS
View Our Other 10T Series Models
The Model 10T Trash Compactor is a single bag, bulkhead compactor which produces pre-cut, space-saving blocks of compacted refuse. These blocks are uniform in size and density. The chute fed model is designed for multi-story buildings, receiving trash from the building trash chute. The hand fed model has varied applications, such as schools, hospitals, etc. The Model 10T is a hydraulically operated concentric ram compactor with hardened cast ductile iron shear teeth compacting against a heavily reinforced door with a quick opening latch.
The standard, full size trash compactor is equipped with a 5 HP power unit and an electrically interlocked hopper door/lid.
Learn More
A slightly shorter trash compactor for applications where a standard length compactor will not fit. It is also equipped with an electrically interlocked hopper door/lid.
Learn More
