International Dynetics
Model 10TM
Schools
*Photos may contain optional equipment

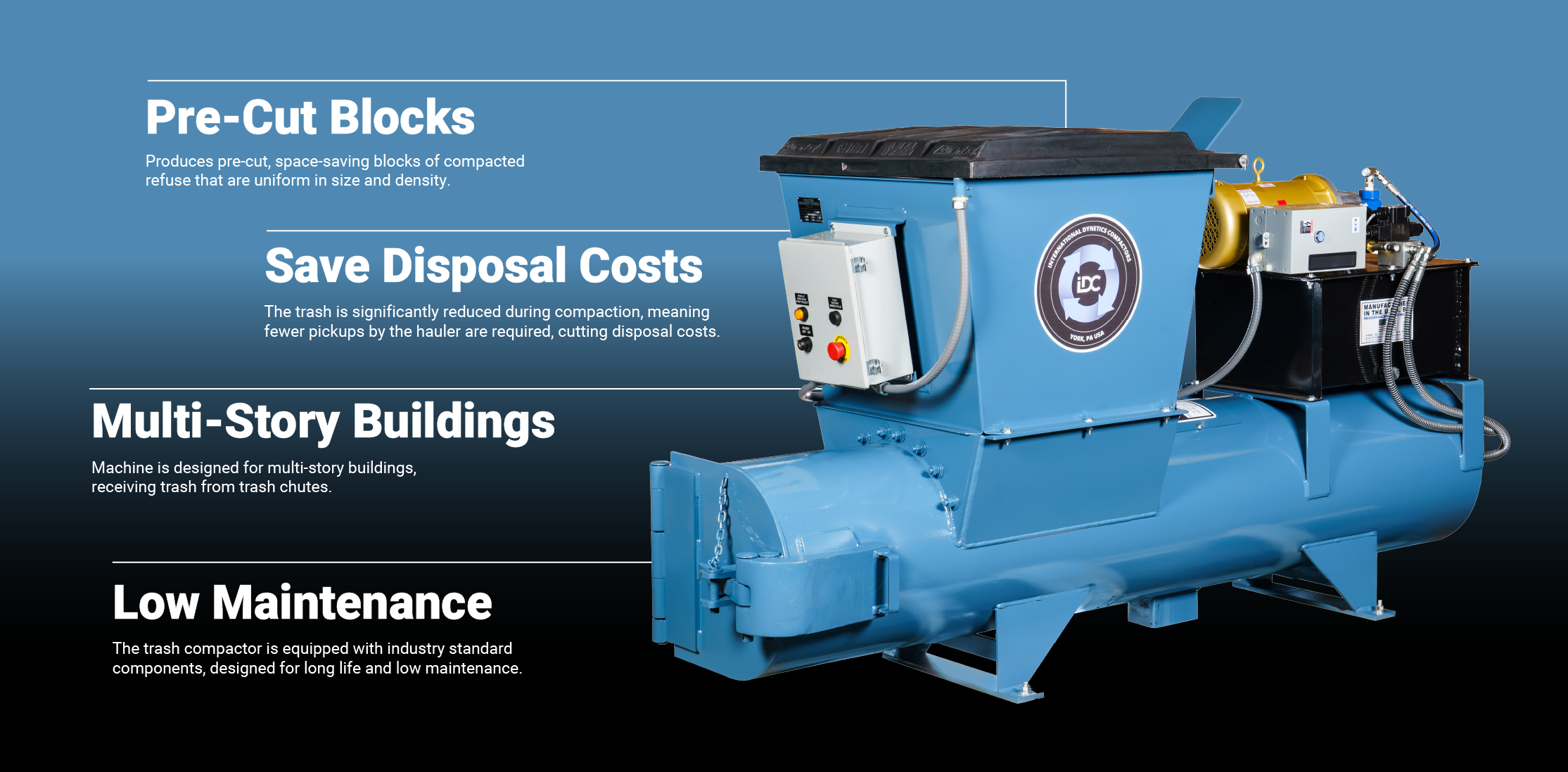

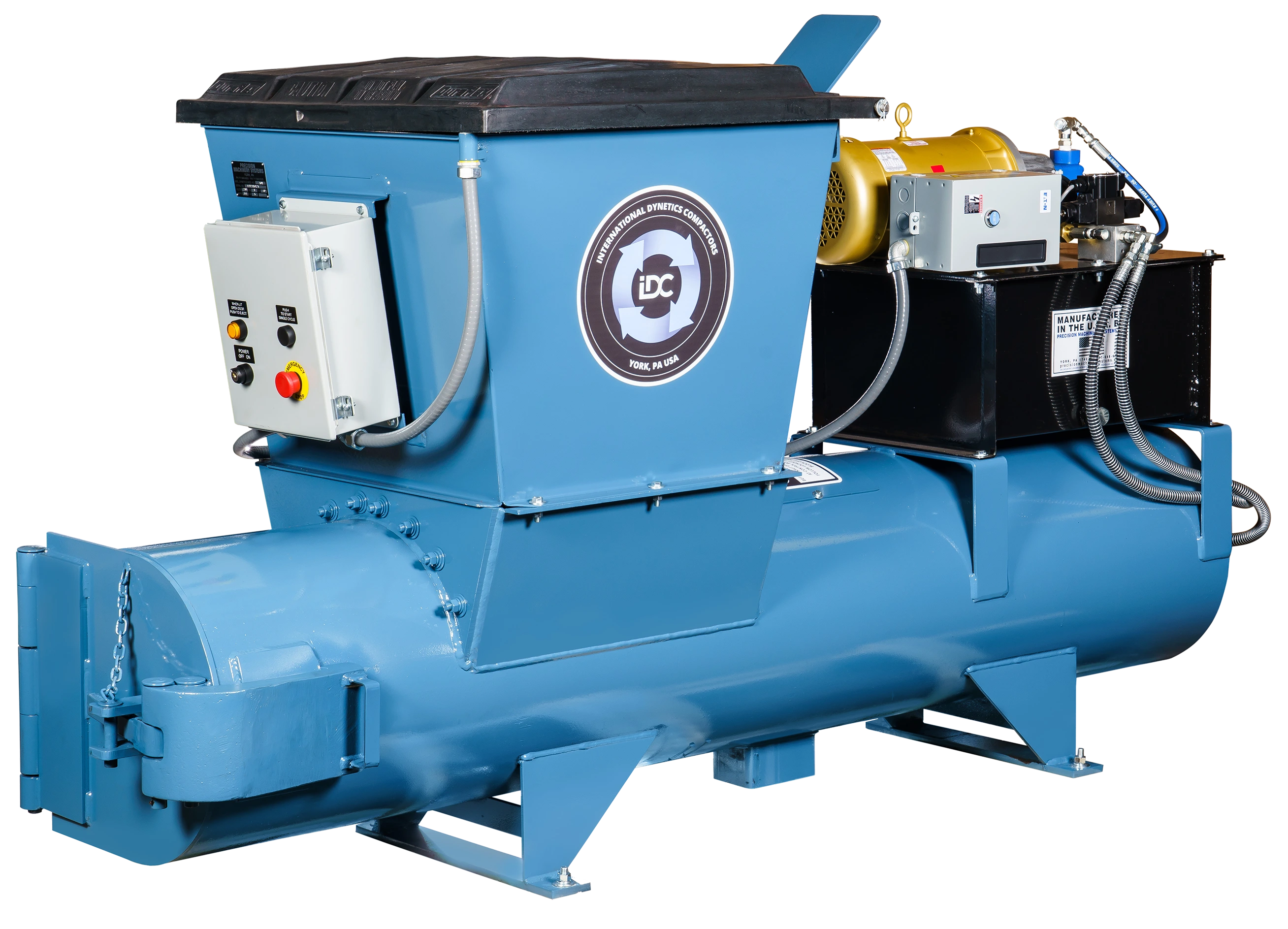

The Model 10TM Bag Packer is a single bag, bulkhead trash compactor which produces pre-cut, space-saving blocks of compacted refuse. This model is shorter in length than the standard Model 10T to accommodate smaller trash rooms. This machine can be chute fed for use in multi-story buildings or hand fed for varied applications such as schools, hospitals, etc.
The Model 10TM Bag Packer is a hydraulically operated concentric ram compactor with hardened cast ductile iron shear teeth compacting against a heavily reinforced door with a quick opening latch. The compaction body and compaction chamber are tubular in shape and form one continuous integral body of structural 3/8″ steel plate. The ram is similarly constructed of 1/4″ plate with a compaction face of 3/4″ plate. Operation is exceptionally quiet. Heavy duty, 4 mil plastic bags are suggested for use with this machine.
Request InformationResources & Warranty Information
10T Series Options and Specifications
Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.
*Additional options/customizations available upon request
| 10T | 10TM | |
|---|---|---|
| Chamber Capacity | 2.9 cf | 2.6 cf |
| Ram Face Pressure | 88 psi | 88 psi |
| Compaction Force | 20,000 lbs | 20,000 lbs |
| Volume Displacement | 14.8 cy/hr | 15.7 cy/hr |
| Cycle Time | 26 seconds | 22 seconds |
| Overall Dimensions (L x W x H) | 90 x 27 x 75 in | 75 x 27 x 69 in |
| Weight | 1,500 lbs | 1,400 lbs |
| Container Type | Single Bag | Single Bag |
| Motor Horsepower | 5 HP | 5 HP |
| Motor Voltage | 208/230/460 V, 3Ph, 4 Wire | 208/230/460 V, 3Ph, 4 Wire |
| Motor Full Load Amps (FLA) | 14.9-13.4/6.7 A | 14.9-13.4/6.7 A |
10T Series Dimensions
| A | B | C | D | E | F | |
|---|---|---|---|---|---|---|
| Model 10T | 1' - 9 ½" | 1' - 11 ½" | 7' - 6" | 6' - 3" | 4' - 3" | 10' - 7" |
| Model 10TM | 1' - 8" | 1' - 11 ½" | 6' - 3 ½" | 5' - 9" | 4' - 3" | 9' - 0" |
BAG PACKERS
View Our Other 10T Series Models
The Model 10T Trash Compactor is a single bag, bulkhead compactor which produces pre-cut, space-saving blocks of compacted refuse. These blocks are uniform in size and density. The chute fed model is designed for multi-story buildings, receiving trash from the building trash chute. The hand fed model has varied applications, such as schools, hospitals, etc. The Model 10T is a hydraulically operated concentric ram compactor with hardened cast ductile iron shear teeth compacting against a heavily reinforced door with a quick opening latch.
The standard, full size trash compactor is equipped with a 5 HP power unit and an electrically interlocked hopper door/lid.
Learn More
A slightly shorter trash compactor for applications where a standard length compactor will not fit. It is also equipped with an electrically interlocked hopper door/lid.
Learn More
