Toronita™
Model 10P
Can Redemption Centers
Canning Operations
Luxury Cruise Ships
Navy Vessels
*Photos may contain optional equipment

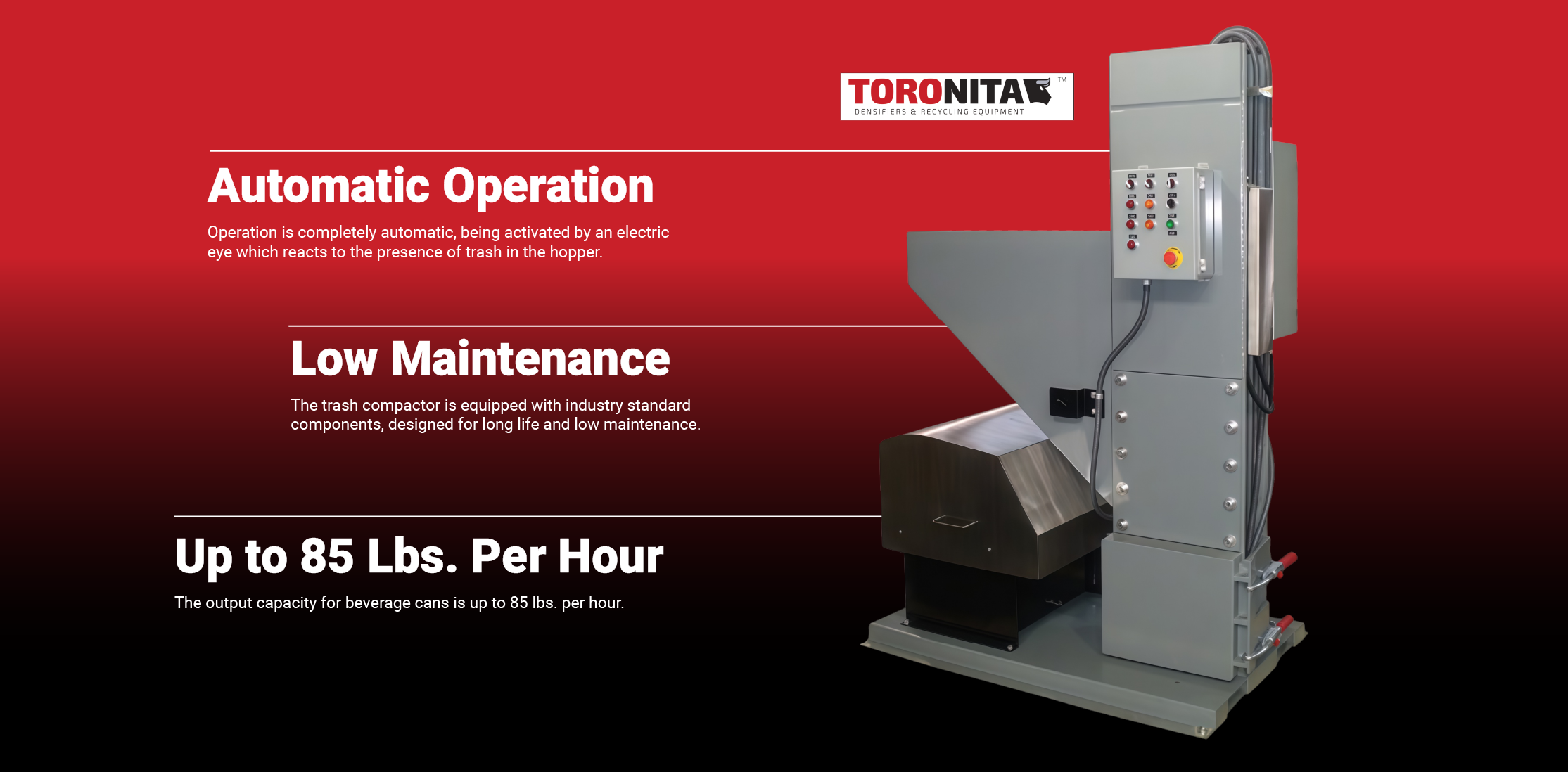

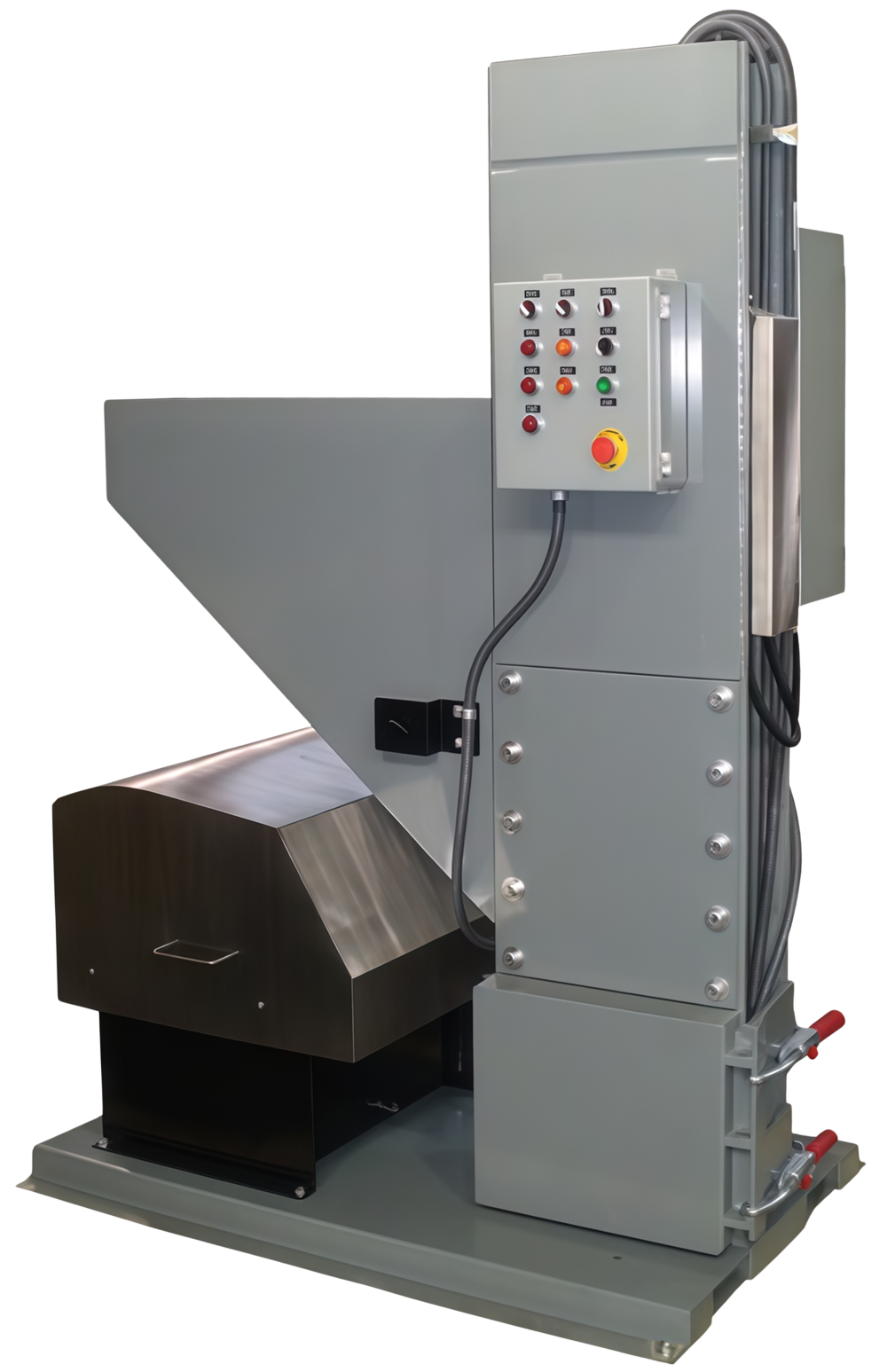

The Toronita™ Model 10P Can Densifier is designed for those applications where a high density slug of beverage cans is required, but where space is limited. Operation is automatic, with the unit being activated by an electric eye which senses material in the loading hopper. The machine senses when there is a complete slug and signals the operator to unload the machine.
A power unit with a 10 gallon hydraulic reservoir is provided. Industry standard components are used to make service fast and easy. The compaction cylinder has a 5″ diameter bore with a 2-1/2″ diameter rod. The equipment utilizes a 5 HP washdown duty motor with 3 phase, 60 cycle power at either 208, 230 or 460 volts.
Equipment is furnished with a motor starter. Control voltage is 110 volt, single phase. The finish is a gray industrial enamel paint to provide protection from deterioration.
Request InformationResources & Warranty Information
P Series Options and Specifications
Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.
*Additional options/customizations available upon request
| 10P | 20P | |
|---|---|---|
| Output Capacity | Up to 85 lbs / hr | Up to 300 lbs / hr |
| Electrical | 208-230-460 V / 3 PH / 60 HZ | 208-230-460 V / 3 PH / 60 HZ |
| Cycle Time | 60 seconds | 30/60 seconds |
| Hopper Volume | 5 cf | 11 cf |
| Hydraulic Reservoir Capacity | 10 gallons | 30 gallons |
| Densified Block Size (L x W x H) | 12 x 12 x 10 in | 15 x 9 x 12 in |
| Weight | 1,500 lbs | 3,000 lbs |
| Overall Dimensions (L x W x H) | 52 x 34 x 75 in | 86 x 30 x 53 in |
| Motor Horsepower | 5 HP | 5 HP / 10 HP |
View Our Other P Series Models
Toronita™ Densifiers are the industry leaders in can densification. Our Can Densifiers are designed to produce a high density slug or briquette of material. Aluminum can densities of up to 30 lbs. per cubic foot and steel can densities of up to 90 lbs. per cubic foot can be achieved. Toronita™ Densifiers are also used as filter presses and in de-watering applications.
Our smallest Can Densifier designed for low volume recycling applications with an output capacity of 85 pounds/hr.
Learn More
Our most popular Can Densifer. Available in five different configurations with throughputs up to 8400 (whole uncrushed cans) per hour.
Learn More
