*Photos may contain optional equipment
Toronita™
Model 20P
Can Redemption Centers
Canning Operations
Luxury Cruise Ships
Navy Vessels
*Photos may contain optional equipment

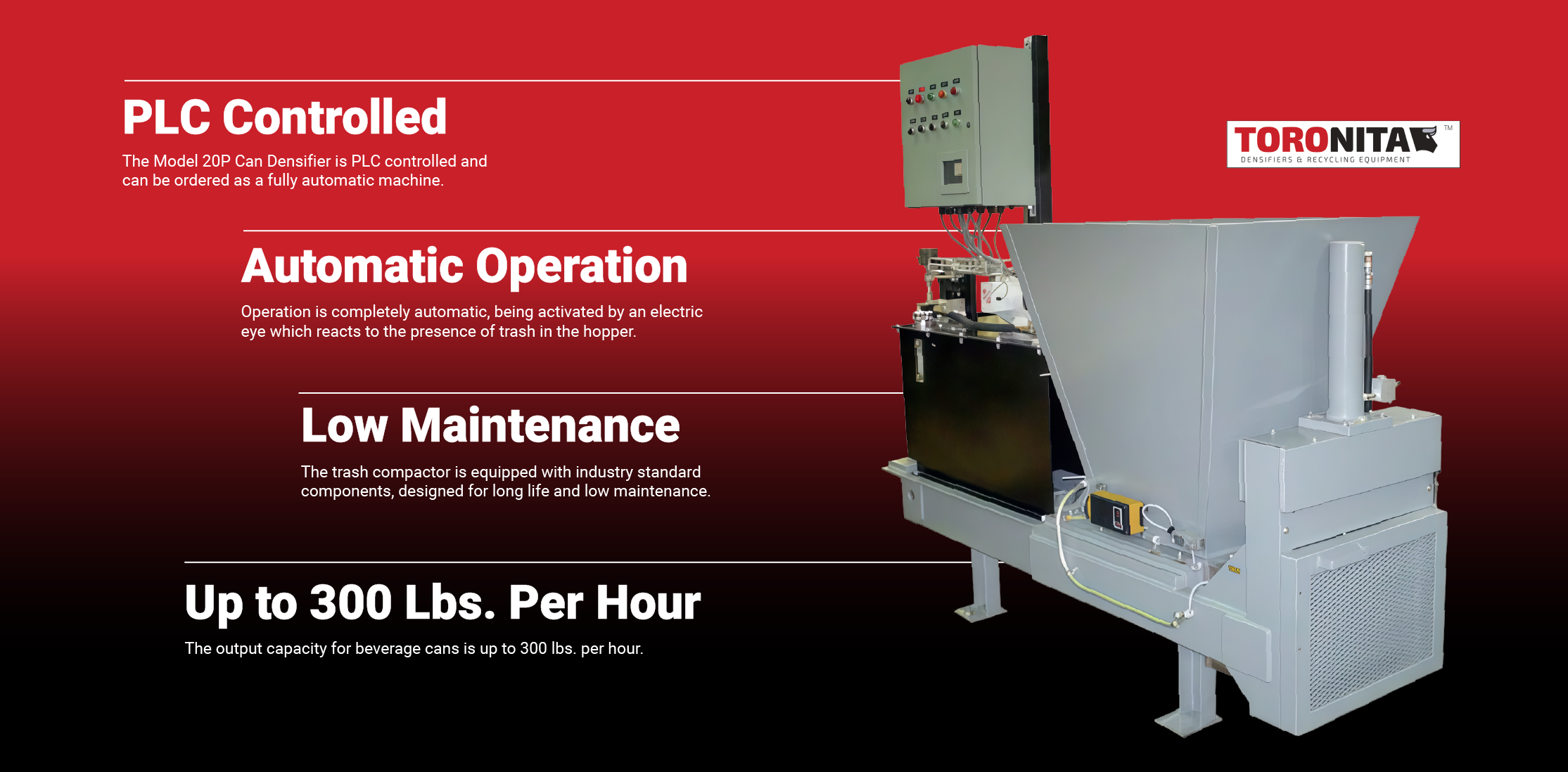

The Toronita™ Model 20P Can Densifier is a horizontal machine which densifies material against a heavy duty bulkhead door. Single slugs of material are produced. Operation is automatic, with the unit being activated by an electric eye which senses material in the loading hopper.
The Model 20P Can Densifier is PLC controlled and can be ordered as a fully automatic machine. It is available in five different configurations including high speed and high chamber machines with throughputs up to 8400 (whole uncrushed cans) per hour.
The “Standard” Model 20P Can Densifier is equipped with a 5HP motor operating at 208, 230 or 460 volts.
Request InformationResources & Warranty Information
P Series Options and Specifications
Hopper flare & extensions, one-side container attachment, dual sided handing, heavy duty options, PLC package, UL labeled control panel package, ANSI Z245.2-2008 package, excessive run timer, keyed on/off switch, control transformer, deodorizer, and sound dampening are available.
*Additional options/customizations available upon request
| 10P | 20P | |
|---|---|---|
| Output Capacity | Up to 85 lbs / hr | Up to 300 lbs / hr |
| Electrical | 208-230-460 V / 3 PH / 60 HZ | 208-230-460 V / 3 PH / 60 HZ |
| Cycle Time | 60 seconds | 30/60 seconds |
| Hopper Volume | 5 cf | 11 cf |
| Hydraulic Reservoir Capacity | 10 gallons | 30 gallons |
| Densified Block Size (L x W x H) | 12 x 12 x 10 in | 15 x 9 x 12 in |
| Weight | 1,500 lbs | 3,000 lbs |
| Overall Dimensions (L x W x H) | 52 x 34 x 75 in | 86 x 30 x 53 in |
| Motor Horsepower | 5 HP | 5 HP / 10 HP |
View Our Other P Series Models
Toronita™ Densifiers are the industry leaders in can densification. Our Can Densifiers are designed to produce a high density slug or briquette of material. Aluminum can densities of up to 30 lbs. per cubic foot and steel can densities of up to 90 lbs. per cubic foot can be achieved. Toronita™ Densifiers are also used as filter presses and in de-watering applications.

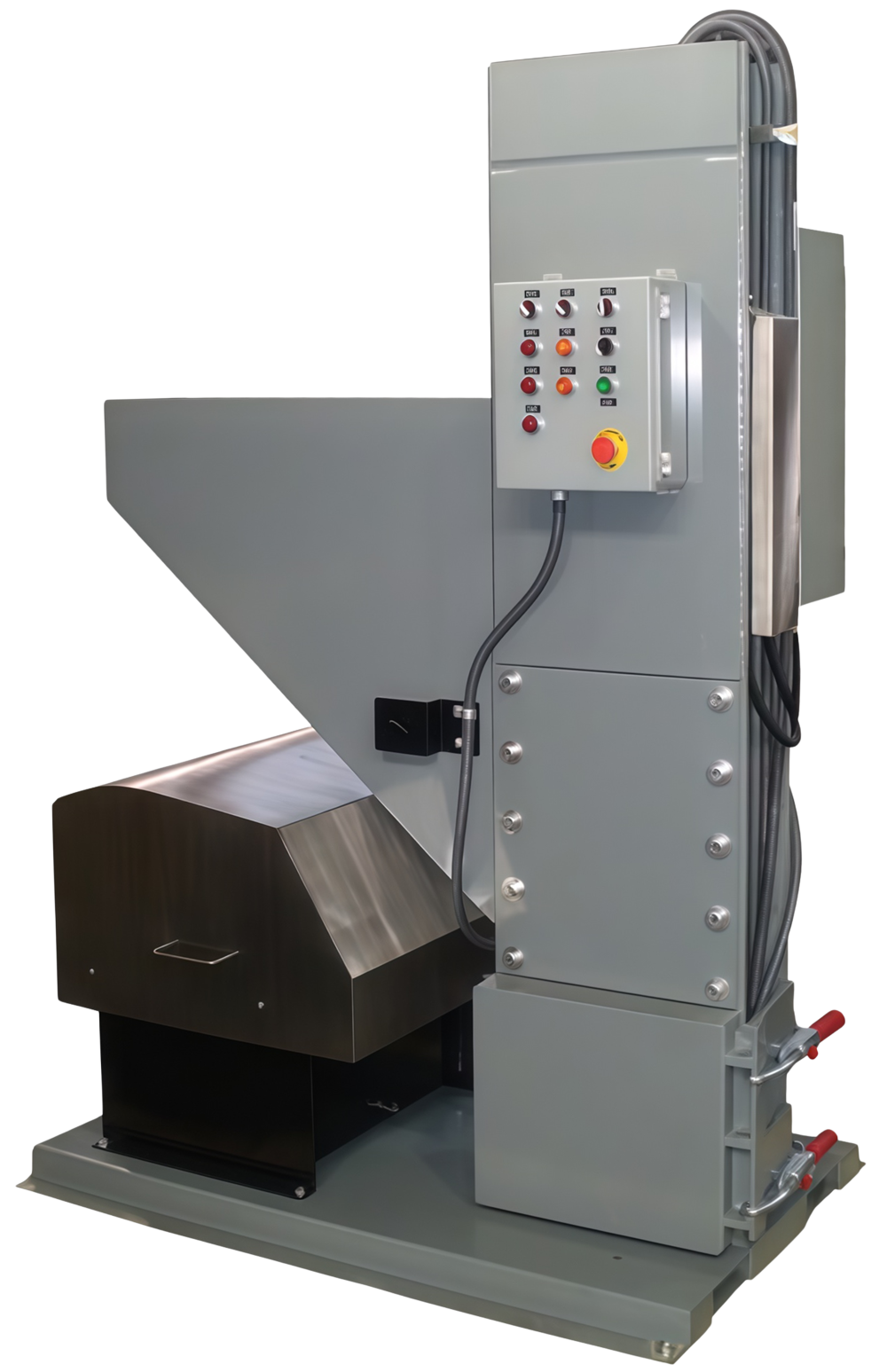

Our smallest Can Densifier designed for low volume recycling applications with an output capacity of 85 pounds/hr.
Learn More
Our most popular Can Densifer. Available in five different configurations with throughputs up to 8400 (whole uncrushed cans) per hour.
Learn More
